Standard max. capacity Up to 45 tonnes
Standard max. external coil diameter
Up to 2600 mm
Standard max. coil width
Up to 2600 mm
Tilting time
20/25 sec
Characteristics Electro-mechanical or electro-hydraulic drive
Safety systems
Luminous devices and acoustic warning signals
Hanging push-button panel
Optional accessories Remote controls
Sideshifting or rotation system
Protections against coil damage
Anti intruder fencing

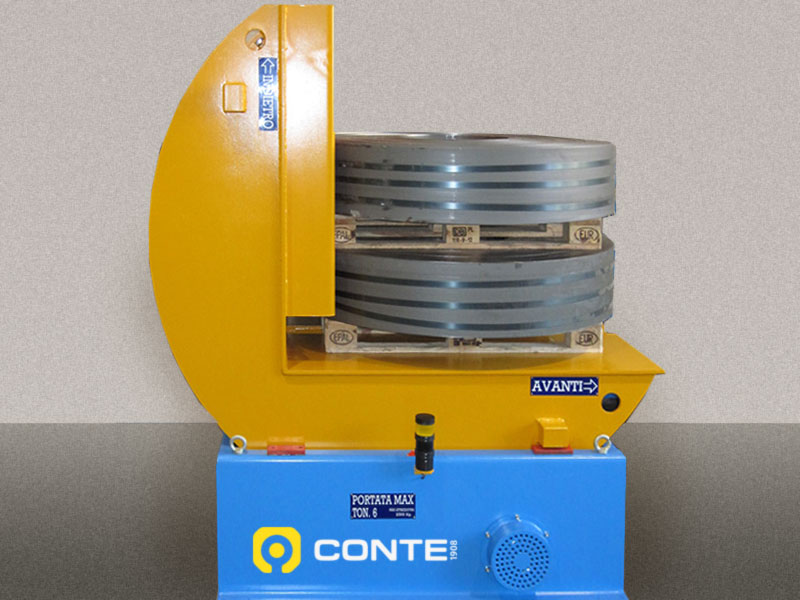

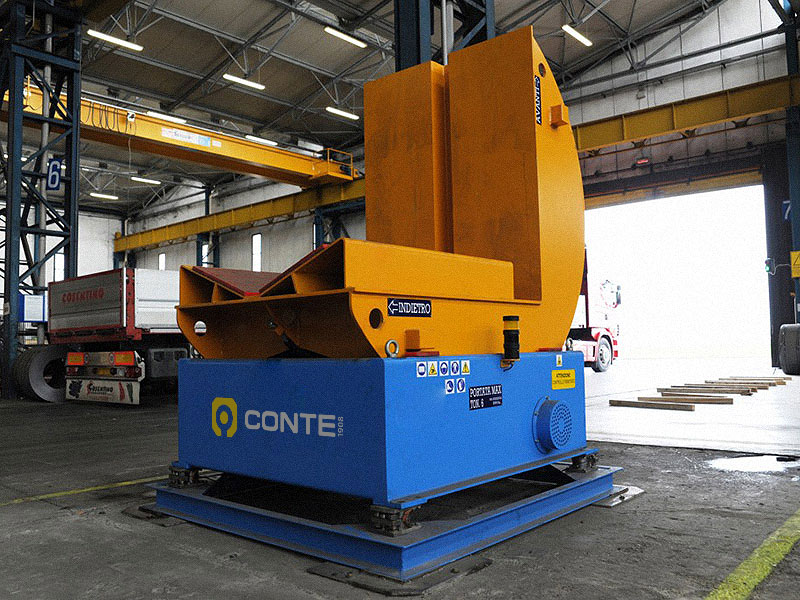

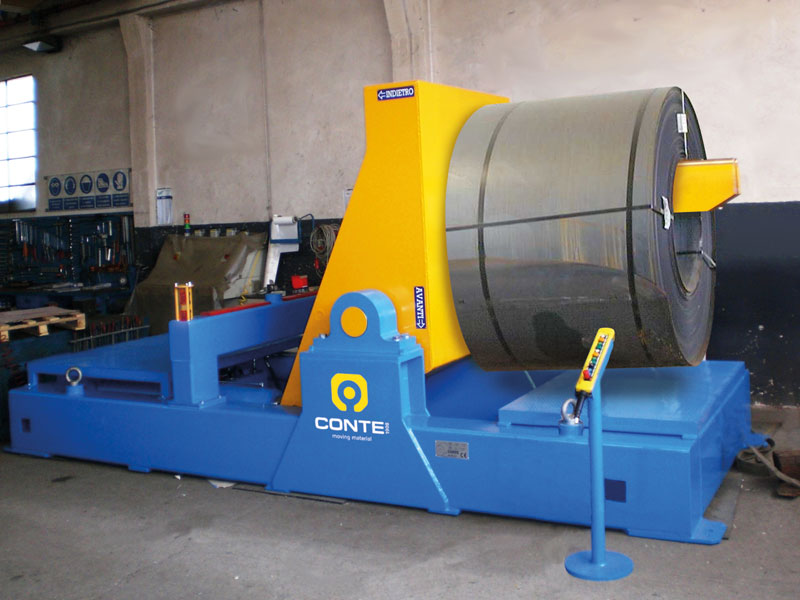

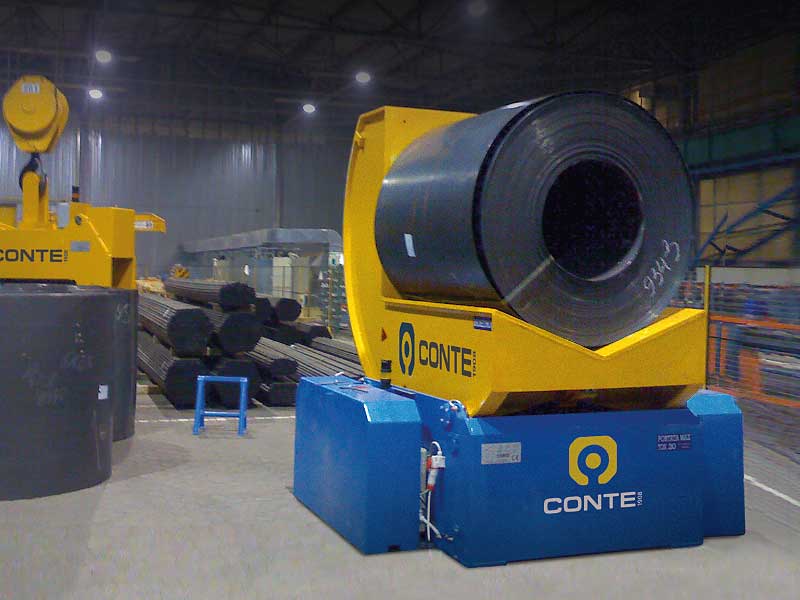

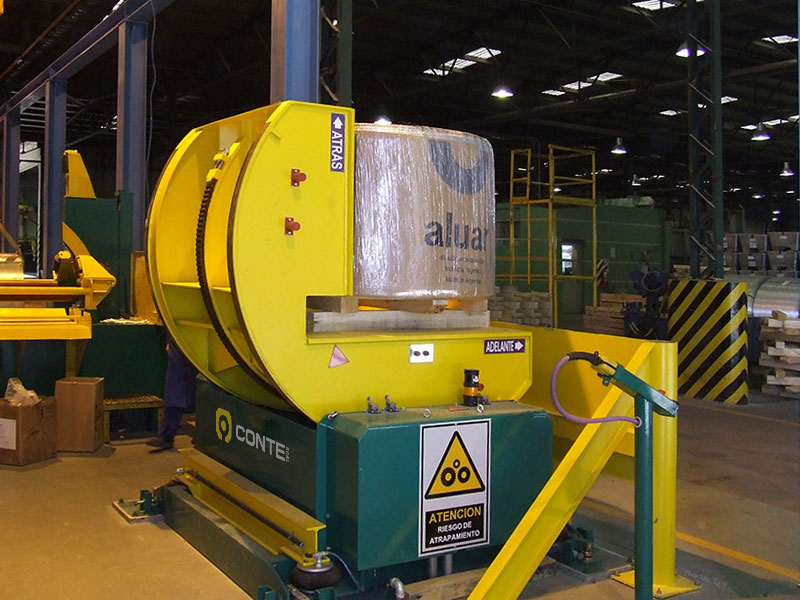

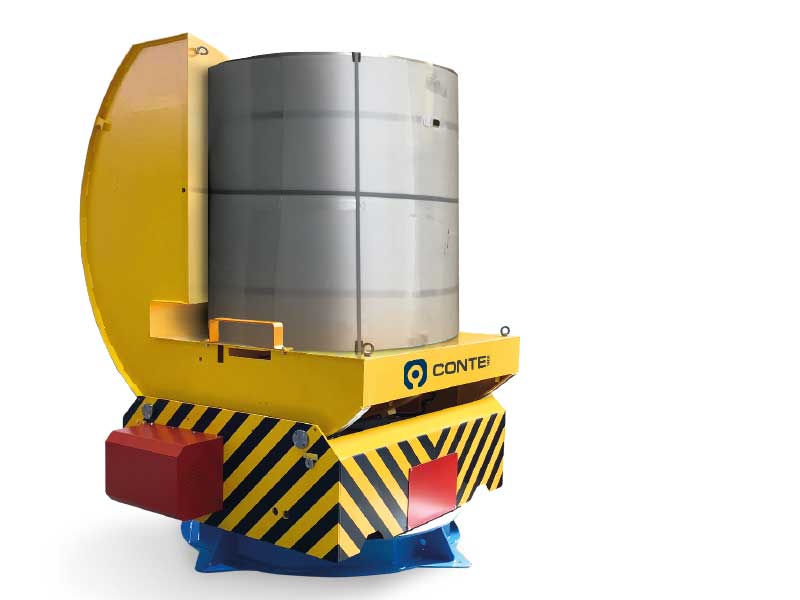

The tilters represent a valid solution to tilt coils and strips from the position with a vertical axis hole to the position with a horizontal axis hole, and vice versa. The movement is obtained by means of an electro-mechanical or electro-hydraulic drive, managed by a special push-button panel, which allows to complete a 90° rotation in less than 30 seconds. Depending on the customer's needs, a remote control and a sideshifting and/or rotation system can also be installed.

All tilters are supplied with certified safety systems and luminous and acoustic devices.
